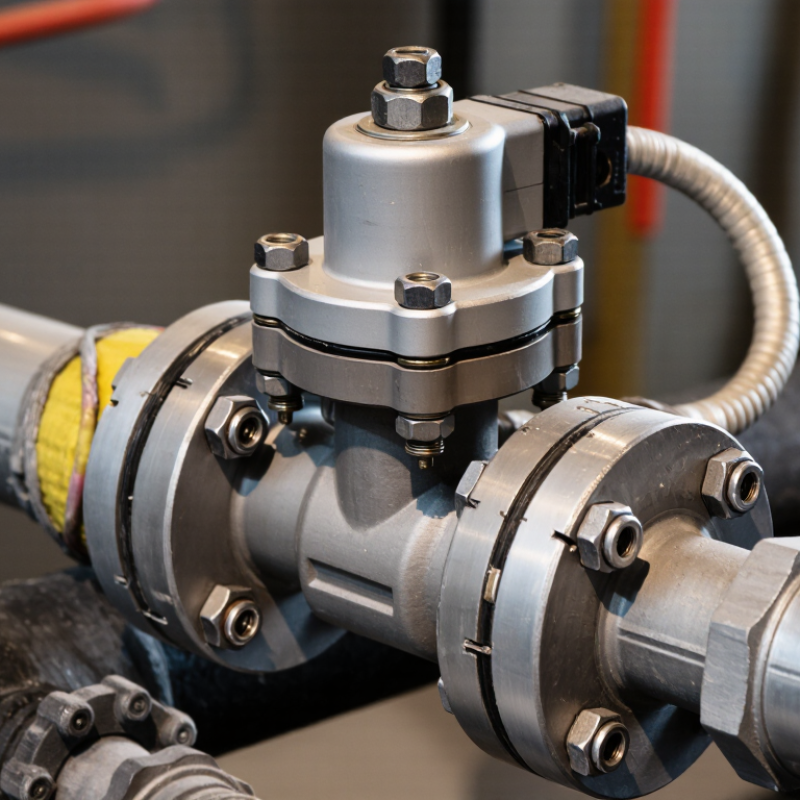

How to Choose a High Temperature Solenoid Valve

Choosing a high temperature solenoid valve is a practical engineering decision, not a simple catalog search. The right model must survive heat, pressure, vibration, contamination, and repeated cycling. A valve that works well at 120°C may fail quickly near 250°C. Small details matter. Seal material matters. Coil insulation matters. Port size matters.

“Temperature ratings are meaningful only when the complete valve assembly is evaluated,” says Dr. Michael R. Lindner, a process-control engineer specializing in thermal fluid systems. This principle should guide every selection. Do not judge a high temperature solenoid valve by its maximum advertised temperature alone. Check whether that rating applies to the body, seals, coil, media, and operating cycle. Ask for test conditions and documented performance data. A specification without context can mislead.

Start with the fluid and its real operating temperature. Steam, hot oil, air, and aggressive chemicals create different demands. Then compare normally closed or normally open operation, voltage, response time, pressure range, and connection type. Consider heat transfer from nearby pipes. A cool-looking installation can still transmit intense heat through metal fittings.

Experience also exposes uncomfortable gaps. A valve may pass a laboratory test yet perform poorly in a dusty plant. Wiring may age before the valve body fails. Maintenance access may be ignored during purchase. Therefore, leave a safety margin, inspect the installation environment, and confirm compatibility with the manufacturer. The cheapest option is not always economical. Sometimes, the better choice is simply the one that remains predictable after months of heat, cycling, and neglect.

How to Choose a High Temperature Solenoid Valve
Table of Contents [Hide]
1 What a High Temperature Solenoid Valve Is and How It Works
2 Define Temperature, Pressure, Media, and Flow Requirements
3 Compare Valve Materials, Seals, Coils, and Connection Types
4 Evaluate Safety Features, Control Methods, and Service Conditions
5 Verify Specifications, Installation Needs, and Long-Term Reliability

What a High Temperature Solenoid Valve Is and How It Works

A high temperature solenoid valve controls fluid or gas through an electrically operated passage. Its main parts include a coil, plunger, spring, body, and sealing elements. When the coil receives power, it creates a magnetic field. The plunger moves and opens or closes the flow path. When power stops, the spring usually returns the plunger to its original position.

Temperature ratings require careful attention. The media temperature may be 200°C, while nearby air is much cooler. However, heat can travel through the valve body and damage the coil. Materials such as stainless steel can tolerate harsh heat, but seals often become the weak point. Check compatibility with steam, hot oil, water, or gas. Confirm pressure, voltage, response time, connection size, and duty cycle. A valve that works in a test room may fail beside a furnace. Real installations are less tidy than datasheets suggest.

Tips: Measure the hottest operating point, not the average temperature. Inspect the seal material and coil insulation separately. Allow space for heat dissipation. Confirm whether the valve should fail open or fail closed during power loss. One detail is easy to miss: frequent cycling creates extra heat. Keep a service record, because small temperature changes may explain later leakage. I have seen selection mistakes begin with one careless assumption.

Define Temperature, Pressure, Media, and Flow Requirements

How to Choose a High Temperature Solenoid Valve

Define Temperature, Pressure, Media, and Flow Requirements

Start with the real temperature range, not the equipment label alone. Record normal, maximum, and minimum temperatures at the valve location. Include heat from nearby surfaces and repeated heating cycles. A valve suitable for 180°C may fail when the coil reaches a higher ambient temperature. Check body, seat, seal, and coil ratings separately. This detail is easy to overlook.

Pressure requires more than reading the upstream gauge. Identify inlet pressure, outlet pressure, pressure differential, vacuum conditions, and possible pressure spikes. The valve must open and close within its rated differential range. For steam or hot gas, pressure can change quickly during startup. A rough estimate may mislead. Measure where practical, and review the worst operating condition rather than the average.

Describe the media precisely. State whether it is water, oil, steam, gas, or a mixed fluid. Note viscosity, corrosive properties, particles, moisture, and cleanliness requirements. Seal materials should match the media and temperature together. Compatibility with one condition is not enough. Then define the required flow rate and acceptable pressure drop. Use the correct flow coefficient for the medium, and avoid choosing by pipe size alone. Consider response time, installation orientation, electrical supply, and the required fail position. A normally closed valve may be unsuitable when continued cooling is essential. Check the datasheet against actual conditions, because small assumptions can create large failures.

Compare Valve Materials, Seals, Coils, and Connection Types

How to Choose a High Temperature Solenoid Valve

Choosing a high temperature solenoid valve starts with the actual process temperature. Do not trust the average temperature alone. Check heat spikes, pressure changes, and how long the valve stays energized. Stainless steel bodies suit demanding environments and resist corrosion better than basic alloys. However, stronger materials can increase cost and weight. A practical choice must balance both.

Seals often decide service life. PTFE handles high heat and many chemicals, while graphite-based seals can tolerate harsher thermal conditions. Elastomer seals may work well at moderate temperatures but can harden near their limits. A small mismatch may cause leakage. I have seen specifications look acceptable, yet repeated heating cycles exposed weak sealing performance. Thermal expansion also matters, especially with mixed metals.

The coil needs a temperature rating above the surrounding air temperature. Choose a class designed for continuous duty if the valve remains powered for hours. Check voltage stability, insulation quality, and available cooling. Connection types affect installation and maintenance. Threaded ports are compact, but flanged connections suit larger pipes and frequent servicing. Tube fittings can simplify clean systems, though alignment must be accurate.

Tips: Compare the highest measured temperature, not the normal reading. Confirm seal compatibility with the fluid. Leave safety margin in coil temperature ratings. Inspect the connection space before ordering. Also, review the failure mode; a valve that closes during power loss may not suit every process.

Evaluate Safety Features, Control Methods, and Service Conditions

How to Choose a High Temperature Solenoid Valve

High-temperature valve selection starts with the service conditions, not the catalog temperature. The U.S. Department of Energy’s 2022 Industrial Decarbonization Roadmap reports that process heating uses about 51% of industrial energy. Small control errors can therefore waste substantial energy. Record the medium, operating temperature, pressure, flow rate, ambient temperature, and cycling frequency. Include start-up and cleaning conditions. They are often harsher than normal operation.

Safety features deserve careful review. Choose a fail-safe position that matches the process risk, such as de-energize-to-close for fuel or steam isolation. A guarded manual override can support maintenance, but it may create risk if left engaged. Thermal protection, pressure ratings, grounding, and suitable ingress protection should match the installation. IEC 61508 principles may support a safety design, but a valve is not automatically safety-rated. The complete system requires documented validation.

Control method also affects service life. Direct-acting valves suit low-flow duties and can operate without differential pressure. Pilot-operated designs may reduce power consumption, but they need adequate pressure to shift reliably. For frequent cycling, check coil temperature, response time, and seal wear. The IEA’s Energy Efficiency 2023 report identifies industry as responsible for roughly 37% of global final energy demand, making efficient control worthwhile. Still, energy savings should not override isolation reliability. In practice, specifications can look precise while missing vibration, pipe strain, or dirty media. That is where the selection becomes imperfect.

How to Choose a High Temperature Solenoid Valve - Evaluate Safety Features, Control Methods, and Service Conditions

Evaluation Dimension What to Check Practical Selection Guidance Safety or Performance Benefit Typical Requirement
Maximum Temperature Confirm the maximum fluid temperature, ambient temperature, and temperature at the coil and valve body. Select a valve with a rated temperature above the highest continuous operating temperature. Include a safety margin for start-up, shutdown, and process excursions. Prevents seal degradation, coil overheating, leakage, and premature failure. Rated temperature should exceed the expected peak temperature.
Valve Body Material Evaluate oxidation resistance, corrosion resistance, mechanical strength, and compatibility with the process medium. Stainless steel is commonly preferred for hot water, steam, and corrosive environments. Brass may be suitable for compatible, less corrosive services at its specified temperature limit. Reduces corrosion, wall thinning, contamination, and pressure-boundary failure. Material must be compatible with both the medium and temperature.
Seal and Seat Material Check the seal compound, seat material, chemical compatibility, temperature rating, and expected cycling frequency. For elevated temperatures, select high-temperature elastomers or a metal-seated design when compatible with the medium and allowable leakage rate. Limits swelling, hardening, cracking, internal leakage, and loss of shutoff performance. Seal rating must cover the actual fluid, temperature, and pressure.
Pressure Rating Identify inlet pressure, outlet pressure, differential pressure, pressure surges, and vacuum conditions. Verify both maximum working pressure and minimum differential pressure. Direct-acting valves can often operate at zero differential pressure, while pilot-operated designs commonly require a minimum differential pressure. Avoids failure to open or close, unstable operation, and pressure-boundary damage. Operating pressure must remain within the valve’s pressure-temperature rating.
Fluid Type Determine whether the medium is steam, hot water, thermal oil, air, gas, fuel, refrigerant, or a corrosive chemical. Use a valve specifically rated for the medium. Steam service requires suitable pressure, temperature, drainage, and seal compatibility; gases may require special leakage and hazardous-area considerations. Prevents chemical attack, unsafe leakage, contamination, and incorrect flow behavior. Medium compatibility must be confirmed from the manufacturer’s technical data.
Valve Operating Principle Compare direct-acting, semi-direct-acting, and pilot-operated construction. Choose direct-acting for low flow, low pressure, or zero-differential-pressure applications. Choose pilot-operated construction for higher flow where adequate differential pressure is continuously available. Matches the valve mechanism to system pressure and flow requirements. Selection depends on flow rate, orifice size, pressure, and differential pressure.
Control Method Review the control voltage, current type, power consumption, switching frequency, and available control signal. Common options include AC or DC coil control, relay output, programmable controller output, and pilot control. Confirm voltage tolerance and inrush or holding current requirements. Reduces wiring errors, coil damage, nuisance trips, and unreliable switching. Control voltage must match the electrical supply and control system.
Fail-Safe Position Decide whether the valve should be normally closed, normally open, or remain in its last position when power is lost. Normally closed is often selected to stop flow during power loss. Normally open may be safer for cooling, venting, or pressure-relief-related circulation. Validate the decision through a hazard review. Helps place the process in the safest state during power or control failure. Fail position must reflect the process hazard analysis.
Electrical Protection Check coil insulation, terminal protection, grounding, surge suppression, and resistance to moisture, dust, and heat. Use an enclosure rating suitable for the installation. Add an appropriately selected fuse or circuit protection and suppress inductive voltage where required. Reduces electric shock, short circuits, electromagnetic interference, and coil burnout. Protection level must suit indoor, outdoor, wet, dusty, or washdown conditions.
Hazardous-Area Suitability Determine whether flammable gases, vapors, dust, or combustible materials are present. Use suitably certified electrical equipment and installation methods where hazardous-area regulations apply. Do not rely on a standard coil in a classified location. Reduces the risk of ignition and supports regulatory compliance. Certification must match the area classification and temperature class.
Flow Capacity Calculate required flow, allowable pressure drop, pipe size, and the applicable flow coefficient. Do not select solely by pipe diameter. Compare the required flow coefficient with the valve’s published rating at the actual fluid conditions. Prevents excessive pressure loss, inadequate heating or cooling, and process instability. Required capacity should be verified at operating temperature and pressure.
Response and Cycle Rate Review opening and closing time, cycles per hour, duty cycle, and expected service life. Use a valve designed for continuous duty if the coil remains energized for long periods. Confirm that the switching frequency does not exceed the specified limit. Limits overheating, mechanical wear, water hammer, and process overshoot. Duty cycle and cycle frequency must match the application.
Installation Orientation Check permitted mounting position, flow direction, access clearance, and proximity to heat sources. Follow the flow arrow and keep the coil within its permitted orientation. Use heat shielding or remote mounting when radiant heat can exceed the coil rating. Improves actuation reliability and protects electrical components from excessive heat. Installation must follow the valve’s mounting and temperature limits.
Contamination and Filtration Assess dirt, scale, welding debris, rust, condensate, and particles in the pipeline. Install suitable upstream filtration where permitted, flush the piping before installation, and provide strainers or separators for contaminated fluids. Prevents sticking, blocked orifices, seat damage, and internal leakage. Cleanliness requirements depend on the valve design and medium.
Condensation and Water Hammer Evaluate condensate drainage, rapid shutoff, long pipe runs, and trapped liquid. For steam and hot-water systems, provide appropriate drainage and consider controlled closing, bypass arrangements, or water-hammer mitigation. Reduces shock loading, vibration, pipe damage, and valve-seat wear. System layout is as important as the valve rating.
Maintenance and Inspection Review replaceable coils, seal kits, cleaning access, isolation valves, and available service documentation. Choose a design that allows safe isolation and depressurization before inspection. Keep critical replacement parts available for planned maintenance. Shortens downtime and supports safer servicing. Maintenance intervals should be based on duty, medium, and operating history.
Testing and Compliance Request pressure, leakage, electrical, material, and temperature documentation applicable to the installation. Confirm conformity with the relevant local pressure-equipment, electrical, machinery, steam, and hazardous-location requirements. Supports traceability, legal compliance, and reliable commissioning. Documentation should cover the exact configuration being installed.

Note: Temperature, pressure, flow, seal compatibility, electrical protection, and certification limits vary by valve construction. Always verify the final selection against the current technical documentation and the actual process conditions.

Verify Specifications, Installation Needs, and Long-Term Reliability

How to Choose a High Temperature Solenoid Valve

Verify specifications before comparing prices. Check the media temperature, pressure range, port size, voltage, and flow direction. A valve rated for 200°C may fail when heat spikes exceed that figure. Confirm the seal material, body material, and duty cycle with the manufacturer’s technical documents.

Installation conditions matter just as much. Leave enough space around the coil for cooling and future servicing. Keep wiring away from hot surfaces, and use heat-resistant cable where required. Mount the valve in the marked flow direction. Support heavy pipework separately. I once saw a correctly rated valve fail early because nearby piping transferred excessive vibration. The specification was right, but the installation was not.

Long-term reliability depends on testing, not claims. Ask for pressure, insulation, and temperature test records. Check whether replacement seals and coils remain available. Inspect the valve after several operating cycles, especially for leakage, discoloration, or delayed response. Short tests help.

A maintenance log is useful. Record operating temperature, switching frequency, and visible changes. Do not rely only on the first successful start-up. Conditions change over time. A checklist can still miss poor insulation or unstable power, so review the actual site during operation. Choose a valve that matches real conditions, not an ideal laboratory figure.
